Function

Reaction Vessels are used in carrying out a wide variety of chemical reactions including condensation, polymerization, esterification etherifciation, hydrolysis, hydration, reduction, oxidation, hydrogenation etc. at pressures (Up to 30 Kg. / cm²) and at temperatures ranging -20°C to +250°C. Reaction needing simultaneous fractional distillation and azeotropic distillation can also be conducted very efficiently using these chemical reaction vessels.

Material of Constructions

Various materials of construction, such as MS, SS304, SS 316, SS 316LSS410, Rubber Lined etc, can be offered as per requirement.

Designs:

Standards chemical reaction vessels and reaction kettle designed for 3 Kg/cm² Internal pressure or full vacuum, jacketed Vessels are designed for 3 Kg/cm² Jacket pressure or full vacuum. Heavy – duty vessels for higher operating pressures are also available as per process requirement. For reaction vessels for highly inflammable material, mechanical seal with supporting assembly can be provided. Variable speed drives and flame proof motors can be incorporated for special application agitators.

Capacities: We offer high quality reaction vessel in different capacities ranging from 50 liters to 35,000 liters.

Types Of Agitator: These vessels can be provided with different types of agitators such as anchor type, propeller type, paddle type, pitched blade turbine type of high-speed homogenizer.

Sealing Of Shaft: Reactors are provided with Gland box or Mechanical seals for shaft sealing arrangement of the shaft with the vessel.

Stuffing Box: Stuffing boxes accomplish sealing by the radial expashalimaron of a soft, deformable material such as layer-wound rubber, plastic, fiber, or a combination of these. Stuffing boxes are lower in initial cost than mechanical seals but are significantly higher in maintenance expenses. Mechanical Seal: Mechanical seals are designed to prevent leakage between a rotating shaft and its housing under conditions of extreme pressure, shaft speed and temperature. Mechanical seals can be single acting or double acting. Single (acting) mechanical seals have one sealing gap.

Single Mechanical Seal:

A single mechanical seal coshalimarsts of two very flat surfaces that are pressed together by a spring and slide against each other. Between these two surfaces is a fluid film generated by theproduct. This fluid film prevents the mechanical seal from touching the stationary ring. An absence of this fluid film (dry running of the pump) results in frictional heat and ultimate destruction of the mechanical seal.

Mechanical seals tend to leak a vapor from the high pressure side to the low pressure side. This fluid lubricates the seal faces and absorbs the heat generated from the associated friction, which crosses the seal faces as a liquid and vaporizes into the atmosphere. So, it’s common practice to use a single mechanical seal if the product poses little to no risk to the environment.

Double Mechanical Seal

A double mechanical seal coshalimarsts of two seals arranged in a series. The inboard, or “primary seal” keeps the product contained within the housing. The outboard, or “secondary seal” prevents the flush liquid from leaking into the atmosphere.

Chemical Reactors

We are a prominent organization that manufactures supplies a vast spectrum of Chemical Reactors. Available in various specifications, these products are exteshalimarvely used in chemical and pharmaceutical industries. The offered range is manufactured using premium quality material following standards and norms of the industry.

Limped Coil Vessel

Our organization is counted amongst the most distinguished manufacturers and suppliers of qualitative Limped Coil Vessel. These vessels are manufactured at our state-of-the-art infrastructure facility under the strict supervision of expert professionals. Latest machines and advanced technology are employed by our professionals to fabricate these vessels as per standards and norms of the industry.

FEATURES:

  1. Technologically advanced
  2. Outstanding performance
  3. Sturdy construction

SPECIFICATIONS:

  1. MOC: S S-304 /S S-316 /M.S/Special Alloy
  2. Coiling: S S-304/S S-316/M.S/Special Alloy
  3. Capacity: 100 Liters to 50, 000 Liters
  4. Agitation: Through Agitator
  5. Operation: Atmosphere or vacuum

INDUSTRIES:

  1. Food
  2. Pharmaceuticals
  3. Chemicals
  4. Pigments
  5. Organic Chemicals
  6. Inorganic Chemicals

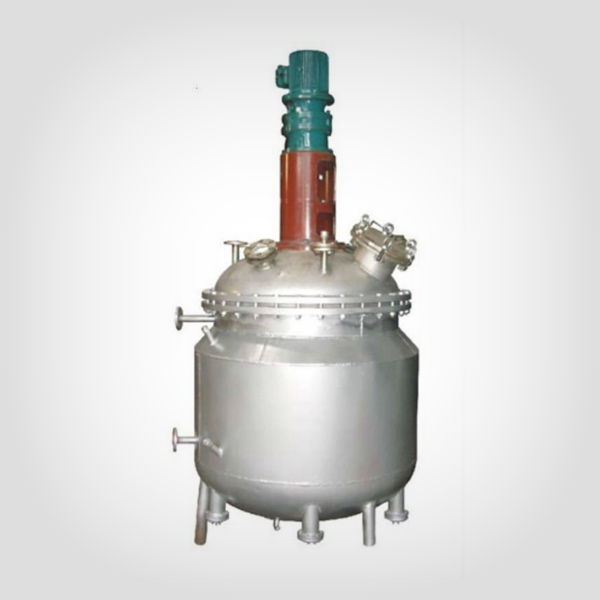

Jacketed Reaction Vessel

Reaction Vessel is a heart of Chemical Industries & this is very important equipment used for Gas – Liquid reactions such as Hydrogenation, Oxidation, Formulation, Chlorination, Carbonation, reaction/ mixing of different type of chemicals in different conditions, pressure/under vacuum, temperature /cooling or at atmospheric conditions. Vessels are used up to 40 kg/cm2 pressure & -30 OC to + 350 OC temperatures. We are manufacturing wide range of GMP/NON GMP Jacketed Reaction Vessel from 100 liters to 50000 liters capacity in Stainless steel grade 304, 304L, 316, 316L, Carbon Steel , Alloy Steel, Mild steel (IS : 2062), Rubber lined & led bonded with outside M.S. or S.S. jacket for cooling /heating purpose with outside insulation also.

FEATURES:

  1. Heat resistance
  2. Maximum stress resistance
  3. High teshalimarle strength

Mixing Vessels

We are a renowned name that widely appreciated for offering a qualitative assortment of Mixing Vessels to our valued clients. These products are suitable for mixing various materials and ideally utilized in different applications. It combines the quality and customization of pressure and/or process vessels with specialized in-tank or external mixing.

FEATURES:

  1. Easy to move from one place to another
  2. Superior quality
  3. Contains reactor with agitator which is mechanically sealed

High Pressure Vessels

We are manufacturer and supplier of High Pressure Vessels. Manufactured by our professionals in our advanced fabrication unit, our products are checked by our quality controllers on various parameters. We provide this range to our esteemed clients in various customized options as per their specific requirements. Clients can avail the offered range at reasonable prices.

FEATURES:

  1. Sturdy constructionr
  2. Superior quality
  3. Heat & chemical resistance
  4. Easy to install & maintain

Agitated Reaction Vessels

We offer high quality Agitated Reaction Vessel in different capacities and different ranging from. Fabricated from superior grade of stainless steel, these vessels can be provided with different types of agitators such as anchor type, propeller type, paddle type, pitched blade turbine type of high-speed homogenizer. The unique design of our reaction vessels allow the conditions to be controlled for fastest possible chemical reaction.

FEATURES:

  1. Excellent finishing
  2. Superb quality
  3. Tough and teshalimarle
  4. Long lasting and corrosion resistant


Designs:
Standards chemical reaction vessels and reaction kettle designed for 3 Kg/cm² Internal pressure or full vacuum, jacketed Vessels are designed for 3 Kg/cm² Jacket pressure or full vacuum. Heavy – duty vessels for higher operating pressures are also available as per process requirement. For reaction vessels for highly inflammable material, mechanical seal with supporting assembly can be provided. Variable speed drives and flame proof motors can be incorporated for special application agitators.
