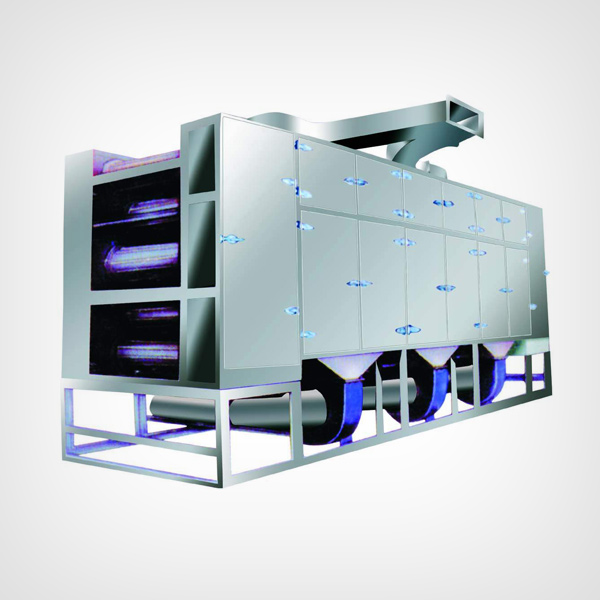

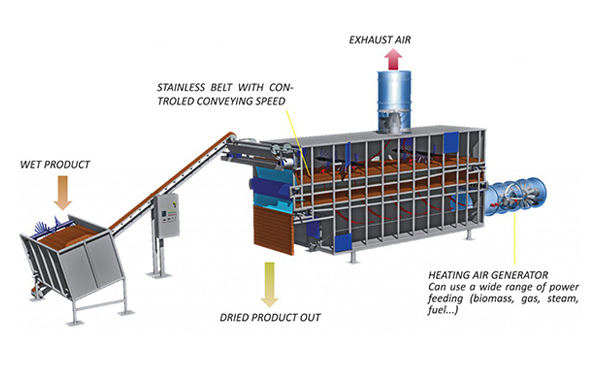

Belt dryer is a continuous convective belt dryer. A well-ventilated layer of product is put on a wire mesh or perforated plate belt conveyor and conveyed continuously through drying chambers. In these chambers, circulating air fans blow hot air through the product vertically. In this process, the circulating air is reheated after each product flow by the heat exchangers integrated into the dryer. The amount of air required to discharge the exhaust vapor from the belt dryer is sucked in by a radial fan and fed to the appropriate zones of the belt dryer. Due to the arrangement of the air inlet and outlet ducts to and from the appropriate zones, the drying air is passed repeatedly through the product layer until it has the optimum vapor content before leaving the dryer.
SHALIMAR Engineering’s Belt drying or conveyor drying systems are used in the chemical and pharmaceutical industries, in food and stimulants, and for dyes and pigments. The belt dryer is suitable for drying free-flowing, crumbly, crystalline, and lumpy products, as well as malleable pastes.
Advantages
- Easy maintenance and easy- clean options with simple and efficient access to all internal components
- Easy operation with a fully automatic control system
- High thermal efficiency due to the integrated air circulation fans, thereby optimizing the exhaust air volume and heat recovery from the dryer exhaust
- Good adaptation of the temperature profile to the drying behavior of different product qualities
Features:
- Suitable for well aerated beds of preformed, crystalline or granular wet feeds.
- High evaporated efficiencies due to the impingement action in plug flow manner.
- Gentle drying
- Uniform drying
- Material from remains intact
- Low power demand
- Closed operation.
Spray Dryer is design according to requirement and usage of Consumer
- Production Capacity = 50-5000 KG./Hr. water/solvent evaporation (According to Requirement of client)
- In Put moisture = 10-90%
- Out Put moisture = 1-5% (Depend up on property of material)
- Power & Burning Fuels will be depend upon production of material
- So we design plant according to requirement of consumer.
