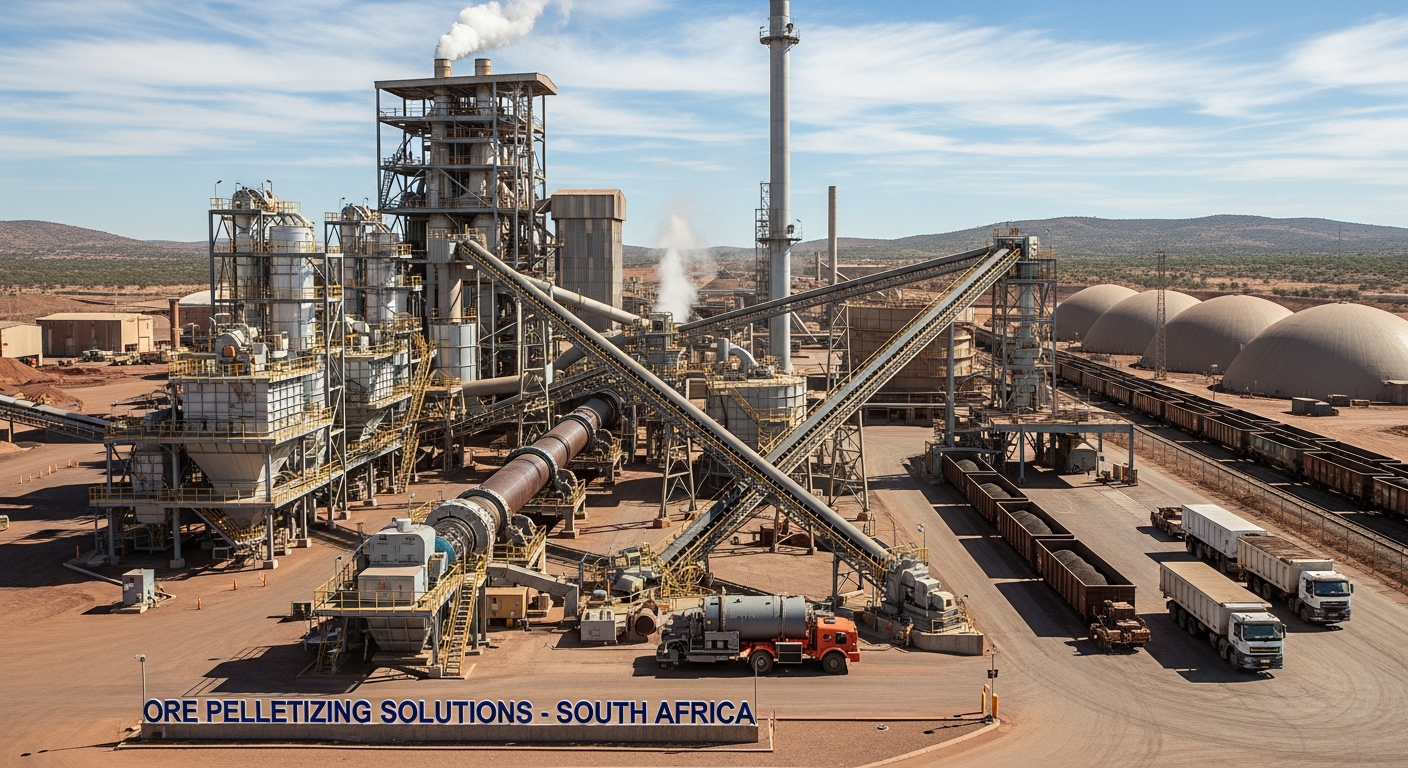

Iron Ore Pelletizing Plant Manufacturer and Supplier in South Africa
Shalimar Engineering is a premier iron ore pelletizing plant South Africa manufacturer, providing comprehensive pelletizing solutions that convert fine iron ore concentrates into premium-quality pellets for steel production and various industrial applications. Our state-of-the-art pelletizing equipment South Africa delivers exceptional performance while meeting international quality standards and addressing the specific operational requirements of South Africa’s robust mining and metallurgical industry.
What is an Iron Ore Pelletizing Plant?
An iron ore pelletizing plant is a specialized industrial facility designed to transform fine iron ore particles into spherical pellets through a systematic process called pelletization. These pellets typically measure 8-16mm in diameter and possess superior mechanical strength, making them the ideal feedstock for blast furnaces, direct reduction plants, and various steel manufacturing operations throughout South Africa and international markets.
The pelletizing process consists of four main stages that work in coordination to produce high-quality pellets:
Preparation Stage: Raw iron ore concentrate is carefully mixed with binding agents, additives, and controlled moisture to achieve optimal balling characteristics. Our advanced material handling systems ensure precise blending ratios and consistent feed preparation throughout continuous production cycles.
Balling Stage: The moistened mixture is fed into disc or drum pelletizers where controlled rolling action forms uniform green pellets. Equipment parameters such as rotation speed, disc angle, and material feed rate are carefully monitored and adjusted to maintain consistent pellet size distribution and quality.
Screening Stage: Green pellets pass through specialized multi-deck screening equipment that separates properly sized pellets from undersized and oversized materials. This critical quality control step ensures only specification-grade pellets advance to the heat treatment stage while rejected materials are efficiently recycled back into the balling circuit, maximizing material utilization.
Induration Stage: Screened pellets travel through high-temperature furnaces operating between 1200-1350°C. The induration process systematically dries, preheats, fires, and cools pellets to achieve final hardness, compressive strength exceeding 250 kg per pellet, and the metallurgical properties demanded by modern steel manufacturers worldwide.
Complete Pelletizing Equipment Solutions
As a trusted pelletizing equipment South Africa supplier, Shalimar Engineering provides all essential components required for efficient and reliable pelletizing operations:
Disc Pelletizers
Disc pelletizers feature rotating inclined discs where iron ore concentrate forms into green pellets through controlled rolling action. These machines deliver excellent control over pellet size distribution through adjustable disc angle, rotation speed, and material feed rate. Our pelletizer equipments range from 3 meters to 7 meters in diameter, accommodating production capacities from small-scale operations to large industrial facilities serving major steel producers across South Africa.
The robust construction incorporates wear-resistant liners that extend equipment life, heavy-duty drive systems that ensure reliability, variable speed controls for operational flexibility, and automated spray mechanisms that maintain optimal moisture levels throughout the balling process, ensuring consistent product quality and plant efficiency.
Drum Pelletizers
Drum pelletizers utilize rotating cylindrical drums for pellet formation, particularly effective with materials requiring extended balling times and gentle handling characteristics. The drum’s carefully engineered length-to-diameter ratio achieves desired pellet characteristics while maintaining high production throughput, minimal energy consumption, consistent quality output, and operational reliability under demanding conditions.
Induration Machines
The induration system represents the most critical and technologically advanced component of any iron ore processing plant South Africa facility. Our grate-kiln and straight grate induration machines heat pellets to precise temperatures, transforming soft green pellets into hardened products with compressive strength exceeding 250 kg per pellet. Multiple heating zones within the furnace ensure complete oxidation and sintering without compromising pellet quality, structural integrity, or metallurgical properties required for steel production.
Advanced burner technology, refractory design, heat recovery systems, and automated temperature control ensure optimal energy efficiency while maintaining consistent product quality throughout operations.
Screening Equipment
Multi-deck vibrating screens separate pellets by size classifications with high accuracy, ensuring only specification-grade product reaches the induration stage. Undersized material returns to the balling circuit while oversized pellets are crushed and recycled through our efficient crushing and screening systems, maximizing raw material utilization, reducing waste generation, and improving overall plant economics.
Iron Ore Processing and Beneficiation
Iron ore beneficiation South Africa services from Shalimar Engineering prepare raw ore for pelletization through systematic crushing, grinding, and separation processes. Beneficiation removes gangue minerals and concentrates iron values to levels suitable for pellet production, typically upgrading ore from 30-40% iron content to 65-68% in the final concentrate ready for pelletization, significantly improving pellet quality and steel production efficiency.
Crushing Circuits
Primary, secondary, and tertiary crushers reduce ore size from mine-run material to precise feed specifications for grinding circuits. Jaw crushers handle coarse material, cone crushers provide intermediate reduction, and impact crushers deliver final sizing. Equipment selection is based on ore hardness, abrasiveness, moisture content, feed size, and desired reduction ratios. Our comprehensive range of mineral processing equipment handles various ore types efficiently while minimizing operational costs, energy consumption, and maintenance requirements.
Grinding Systems
Ball mills and rod mills grind crushed ore to liberation size where iron minerals can be effectively separated from waste materials through magnetic separation or flotation. Grinding circuit design carefully balances energy consumption against required particle size distribution for downstream separation processes, achieving optimal mineral liberation while avoiding overgrinding that increases energy costs without improving recovery rates or concentrate quality.
Magnetic Separation
Magnetic separators recover magnetite and other magnetic iron minerals from ground ore with exceptional efficiency. Low-intensity magnetic separators handle strongly magnetic materials while high-intensity separators process weakly magnetic minerals and complex ores. Our magnetic separation systems achieve iron recovery rates exceeding 90% while producing clean concentrates suitable for direct pelletization, minimizing iron losses and maximizing resource utilization.
Flotation Technology
Flotation cells separate hematite and other non-magnetic iron minerals through surface chemistry principles and selective reagent addition. Chemical reagents selectively attach to iron minerals, allowing them to float to the surface while gangue minerals sink to the bottom. This process effectively upgrades iron content while removing silica, alumina, phosphorus, and other impurities that negatively impact pellet quality, steel production efficiency, and final product specifications.
Why Choose Shalimar Engineering as Your Pellet Plant Manufacturer?
Shalimar Engineering ranks among the most reliable pellet plant manufacturers South Africa clients trust for several compelling reasons that set us apart in the industry:
Technical Expertise: Our engineering team brings over 30 years of accumulated experience in mineral processing and pelletizing technology, having successfully completed numerous projects across multiple countries, continents, and diverse geological conditions. We understand the unique challenges of South African ores and operating conditions. Visit our about us page to learn more about our company history, technical capabilities, project portfolio, and industry expertise.
Quality Equipment: We source machinery and components from certified manufacturers worldwide and conduct rigorous quality inspections before delivery, ensuring every piece of equipment meets exact specifications and performance standards required for demanding South African mining conditions, harsh environments, and continuous operation requirements.
Custom Solutions: Each project receives individual attention with designs specifically tailored to your ore characteristics, production targets, site conditions, water availability, power supply, environmental requirements, and operational preferences rather than generic standardized approaches that may not suit your specific local conditions or business objectives.
Complete Support: From initial feasibility studies and conceptual design through detailed engineering, procurement, construction, commissioning, and beyond, our dedicated team provides comprehensive support including operator training programs, spare parts supply, technical documentation, process optimization services, troubleshooting assistance, and ongoing technical support throughout the entire plant lifecycle.
Proven Track Record: Our impressive portfolio includes operational plants producing millions of tons annually with consistently high product quality, plant availability exceeding industry benchmarks, satisfied clients worldwide, measurable return on investment, and long-term operational success that demonstrates our commitment to excellence.
Turnkey Pelletizing Plant Projects
Shalimar Engineering delivers turnkey pelletizing plant South Africa projects that encompass every aspect of plant development from initial concept through full commercial production and ongoing optimization support:
Engineering Services
Detailed engineering packages cover comprehensive process design, equipment specifications and selection, civil works and foundations, structural steel design, piping systems and layouts, electrical distribution networks, instrumentation and control systems, safety protocols and emergency systems, and environmental compliance measures. Our advanced 3D modeling capabilities identify potential issues before construction begins, preventing costly field modifications, construction delays, budget overruns, and safety hazards that can significantly impact project viability and timeline.
Equipment Procurement
As established mining equipment suppliers South Africa, we maintain strong relationships with leading global manufacturers, regional suppliers, and local fabricators. Our procurement processes ensure timely delivery of components while maintaining strict quality standards through factory inspections, material testing protocols, performance verification procedures, and comprehensive documentation requirements. View our complete product portfolio for detailed specifications, technical data, performance characteristics, and application information.
Construction Management
Experienced project managers coordinate all construction activities, managing contractors and subcontractors, monitoring progress against schedules, controlling costs and budgets, ensuring safety compliance and worker welfare, maintaining quality standards throughout execution, resolving issues promptly, and keeping stakeholders informed. Regular reporting keeps clients fully informed about schedule adherence, budget status, quality compliance, safety performance, milestone achievements, and any issues requiring management attention or decision-making.
Commissioning Services
Systematic commissioning procedures verify equipment functionality, system integration, control systems operation, safety interlocks, emergency shutdown systems, and performance against design specifications and guaranteed parameters. Our engineers supervise initial operations, troubleshoot issues systematically, optimize parameters to achieve guaranteed capacities and quality standards, train operators comprehensively, develop operating procedures, and ensure smooth transition to normal production operations with minimal disruption.
Industrial Pelletizing Solutions for South Africa
Industrial pelletizing solutions South Africa from Shalimar Engineering address unique regional challenges including variable ore characteristics, water availability constraints, energy costs and reliability, environmental regulations, labor requirements, and operational challenges specific to the South African mining sector:
Climate-Adapted Designs
Equipment specifications account for South Africa’s diverse climate conditions with temperatures ranging from near-freezing conditions in highland mining areas to extreme heat in lowland regions. Enhanced cooling systems, upgraded electrical components rated for temperature extremes, specialized lubricants formulated for local conditions, corrosion-resistant materials, and weatherproof enclosures ensure reliable year-round operation without performance degradation, unexpected failures, or production interruptions.
Water Conservation
Water recycling systems significantly reduce freshwater consumption by treating and reusing process water, addressing South Africa’s ongoing water scarcity challenges and environmental concerns. Thickeners recover water from tailings streams while clarifiers treat water from various process stages for reuse in ore preparation, dust suppression systems, equipment cooling circuits, and auxiliary operations, minimizing environmental impact, reducing operating costs, and ensuring sustainable operations.
Energy Efficiency
Power-efficient equipment design minimizes electricity consumption, directly addressing South Africa’s energy costs and supply reliability challenges. Variable frequency drives, premium efficiency motors, optimized grinding circuits, heat recovery systems, process optimization software, and load management strategies reduce operating costs while maintaining production targets, improving profitability, and reducing environmental footprint.
Dust Control Systems
Comprehensive dust collection systems capture particulate emissions from crushing stations, screening operations, conveying systems, and pelletizing equipment. Industrial bag filters and electrostatic precipitators meet stringent environmental standards while protecting worker health and surrounding communities through our advanced process control systems, ensuring regulatory compliance, community acceptance, and sustainable operations.
Iron Pellet Production Optimization
Iron pellet production South Africa facilities achieve optimal performance through careful attention to process variables, proactive equipment maintenance, rigorous quality control protocols, and continuous improvement initiatives:
Raw Material Preparation
Consistent feed quality is absolutely fundamental to stable pelletizing plant production and consistent product quality. Blending systems homogenize ore from multiple sources, ensuring uniform chemical composition, consistent physical characteristics, and predictable behavior throughout processing. Moisture control systems maintain optimal water content for effective balling through precise monitoring, automated adjustment mechanisms, feedback control loops, and operator interface systems.
Balling Circuit Control
Automated control systems continuously monitor and adjust critical balling parameters including disc speed, disc angle, feed rate variations, moisture addition rates, and binder dosage levels. These sophisticated controls maintain target pellet size distribution while minimizing recycle loads, reducing energy consumption, maximizing production efficiency, optimizing material utilization, and ensuring consistent product quality throughout all operating conditions.
Induration Optimization
Temperature profiles throughout the induration furnace are precisely controlled in multiple zones to achieve complete oxidation and sintering without over-firing that wastes energy or under-firing that produces weak pellets. Fuel consumption is continuously optimized while maintaining all required pellet properties including compressive strength, tumble resistance, abrasion resistance, porosity, reducibility, swelling characteristics, and metallurgical performance specifications.
Quality Monitoring
Laboratory testing facilities and online analyzers continuously monitor critical pellet quality parameters. Compressive strength testing, tumble index measurements, abrasion resistance evaluation, size distribution analysis, chemical composition verification, reducibility testing, and metallurgical property assessment guide process adjustments to maintain specification compliance, customer satisfaction, and premium pricing.
Installation and After-Sales Support
Iron ore pellet plant installation South Africa services from Shalimar Engineering ensure projects are completed safely, on schedule, within budget, and to the highest quality standards demanded by the mining industry:
Installation Supervision
Experienced field engineers supervise mechanical installation, electrical work, instrumentation connections, and civil construction activities throughout project execution. Comprehensive pre-commissioning checklists verify proper installation before energizing any equipment. Detailed alignment checks, torque specifications, welding inspections, electrical testing protocols, safety verification procedures, and quality documentation prevent premature equipment failures and ensure long operational life.
Operator Training
Comprehensive training programs thoroughly prepare client personnel to operate plants safely and efficiently under all conditions. Training covers equipment operation procedures, process control strategies, routine maintenance requirements, systematic troubleshooting approaches, emergency response protocols, safety procedures, environmental compliance, quality control methods, and performance optimization techniques. Extensive hands-on training during commissioning provides practical experience under expert supervision.
Technical Support
Ongoing post-commissioning support includes remote monitoring capabilities, technical consultations via phone or video, process optimization services, periodic plant audits and assessments, performance analysis and benchmarking, and emergency assistance when needed. Spare parts inventories ensure critical components are readily available when needed, minimizing unplanned production downtime and lost revenue. Contact us for ongoing support services and technical assistance.
Performance Guarantees
We confidently stand behind our designs with comprehensive performance guarantees covering production capacity, pellet quality specifications, energy consumption targets, water consumption levels, availability metrics, and environmental compliance parameters. Systematic testing during commissioning verifies all guaranteed parameters are achieved before final acceptance and project handover to client operations.
Applications of Iron Ore Pellets
Pelletized iron ore serves multiple industries and applications across South Africa’s industrial landscape and international export markets:
Steel Production: Blast furnaces and direct reduction plants use pellets as primary iron feedstock, appreciating their consistent size distribution, high iron content, excellent reducibility, minimal fines generation, and superior furnace performance that increases productivity and reduces production costs.
Sponge Iron Manufacturing: Direct reduced iron (DRI) plants strongly prefer pellets due to uniform size distribution, controlled porosity structure, consistent chemistry, and metallurgical properties that facilitate reduction reactions, produce high-quality sponge iron, minimize operational problems, and improve overall plant efficiency.
Ferroalloy Production: Electric arc furnaces producing ferroalloys utilize iron pellets as a reliable source of metallic iron in alloy formulations, ensuring consistent chemistry, product quality, furnace efficiency, minimal impurities, and predictable performance.
Export Markets: High-quality pellets command premium prices in international markets where steel mills pay substantially more for superior metallurgical performance, reduced operational costs, improved environmental compliance, consistent supply reliability, and reduced quality variation.
Our Related Products and Services
Shalimar Engineering offers a comprehensive range of related equipment and integrated solutions for the mining and mineral processing industry:
- Pelletizer Equipments – Complete pelletizing machinery and systems
- Material Handling Systems – Conveyors, feeders, and storage solutions
- Crushing Equipment – Primary to tertiary crushers
- Screening Machinery – Vibrating and rotary screens
- Complete Beneficiation Systems – Integrated mineral processing solutions
Technical Specifications
Modern iron ore pelletizing plant facilities achieve impressive technical specifications that meet international standards:
- Pellet Size: 8-16mm diameter (90%+ within specification range)
- Compression Strength: 250+ kg/pellet (exceeding industry standards)
- Tumble Index: 95%+ (measured per ASTM standards)
- Iron Content: 63-68% Fe depending on concentrate grade
- Production Capacity: 0.5 to 12 million tons per year
- Energy Consumption: 30-45 kg fuel equivalent per ton
- Water Consumption: 0.3-0.5 m³ per ton with recycling
Plant Availability: 92%+ annual operating time
Frequently Asked Questions
Pelletizing plants range from small facilities producing 0.5 million tons annually to large operations exceeding 10 million tons per year. Capacity depends on ore characteristics, induration technology, operational hours, and project requirements. Shalimar Engineering designs plants matched to client specifications with provisions for future expansion.
Project timelines typically span 18-36 months from engineering start to full commercial production. Smaller plants may be completed faster while larger facilities require extended construction periods. Detailed planning and experienced teams minimize schedule risks.
Regular maintenance includes daily lubrication, weekly inspections, monthly wear part checks, quarterly assessments, and annual shutdowns for major overhauls. Induration furnace refractories require continuous monitoring and periodic repairs. Preventive maintenance programs maximize equipment life and availability.
Yes, properly designed plants process magnetite, hematite, goethite, and mixed iron oxide ores. Beneficiation circuits are configured for specific ore mineralogy while pelletizing equipment accommodates various concentrate characteristics with operational flexibility.
Comprehensive environmental systems include dust collectors on all material handling points, water treatment facilities, stack gas scrubbers, noise control measures, continuous emission monitoring, and full compliance with South African environmental regulations.
Contact Shalimar Engineering Today
Ready to develop your iron ore resources with proven pelletizing technology? Contact Shalimar Engineering, your trusted iron ore pelletizing plant manufacturer and supplier in South Africa.
Our experienced team will evaluate your ore characteristics, production objectives, and site conditions to develop an optimal solution. We provide complete services from initial concept through operational support, ensuring your success at every project stage.
Contact Shalimar Engineering immediately – your reliable Iron Ore Pelletizing Plant Manufacturer and Supplier in South Africa.
