Lime Handling System
Shalimar Engineering delivers industrial-grade pneumatic lime handling systems for lime transfer, storage, and feeding across manufacturing plants. Our lime conveying systems handle hydrated lime, quicklime, and lime powder through enclosed pressure and vacuum configurations ensuring dust-controlled operation for plants in India, UAE, Saudi Arabia, Qatar, Oman, Kuwait, Bahrain, Iraq, Iran, and South Africa.

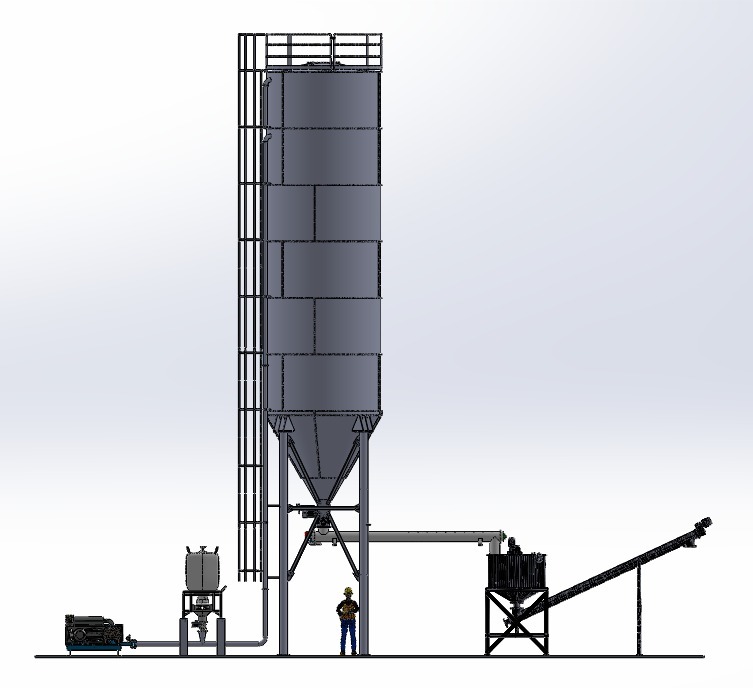

Industrial Lime Handling System Product Overview
The lime handling system provides complete material transfer solutions for cement, steel, power, and water treatment plants requiring consistent lime feeding and storage. Our industrial lime handling equipment employs pneumatic conveying moving lime powder through enclosed pipelines without manual intervention.
The system handles dense phase lime conveying for shorter distances and dilute phase lime conveying for long-distance applications. Automated PLC controls ensure precise feeding while integrated dust collection systems maintain environmental compliance.
Need a reliable solution? Contact our team today.

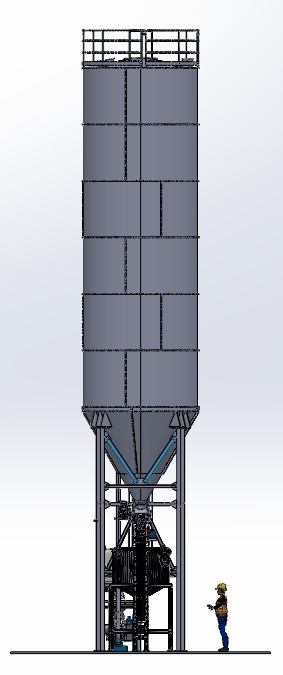

How the Lime Handling System Works
The lime transfer system operates through integrated stages: lime stored in sealed silos, controlled discharge through rotary airlock valves or screw conveyors, pneumatic conveying via compressed air or vacuum, material separation at receiver using cyclone separators, and dust filtration through pulse jet collectors. This enclosed process eliminates manual handling while ensuring consistent material quality and zero-emission operation.
Get a customized system layout — submit your enquiry.
Key Components of the System
Storage Silo – Heavy-duty steel construction with conical bottom, moisture-proof design, and level indicators.
Feeding Device – Rotary airlock valves or screw feeders providing controlled discharge without air leakage.
Air Blower – Centrifugal blowers for dilute phase or compressed air for dense phase conveying.
Conveying Pipeline – Abrasion-resistant steel piping with smooth bends minimizing pressure drop.
Receiver & Separation – Cyclone separators or filter receivers extracting lime from conveying air efficiently.
Dust Collection – Integrated bag filters capturing fine particles and maintaining air quality standards.
Control Panel – PLC-based automation managing feed rates, pressure, and system interlocks for continuous operation.
Request detailed specifications — contact our team.

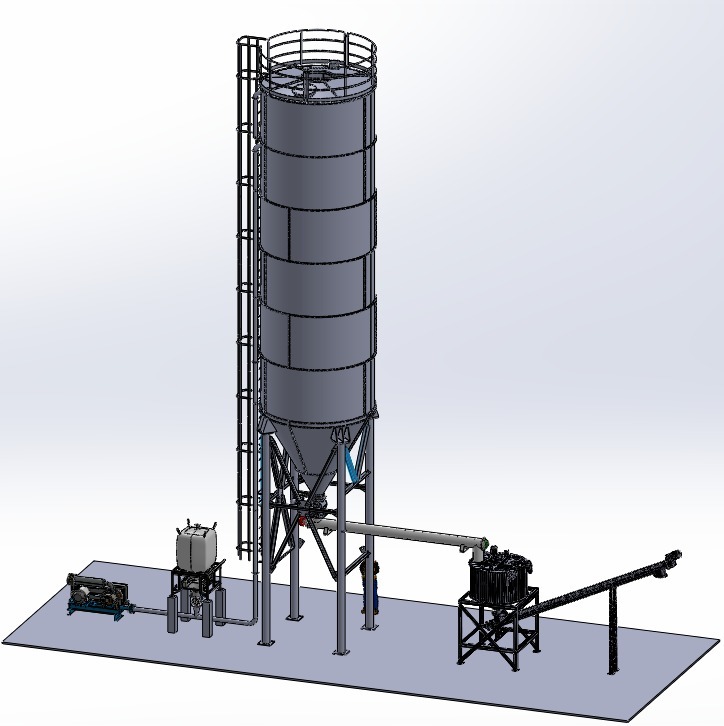

Types of Lime Conveying Systems We Offer
Pressure Pneumatic Conveying – For multiple discharge points, longer distances, higher capacity using positive pressure.
Vacuum Conveying – Ideal for dust-free loading, single pickup from multiple sources using negative pressure.
Dense Phase Conveying – Low-velocity transfer minimizing product degradation for shorter distances.
Dilute Phase Conveying – High-velocity continuous transfer for long distances and high-throughput applications.
Not sure which system fits? Speak with our engineers.
Applications & Industries Served
Lime handling systems serve cement plants feeding rotary kilns, steel plants for desulfurization, power plants for emissions control, water treatment facilities for pH adjustment, chemical processing for neutralization, and mining operations in flotation circuits. Our systems handle demanding Middle Eastern and African industrial environments requiring robust material handling equipment for continuous operation.
Let’s discuss your requirements, send your project details.
Why Choose Shalimar Engineering?
Shalimar Engineering delivers customized turnkey lime handling systems with heavy-duty construction for continuous operation. Our export-ready solutions offer competitive pricing for Gulf and African markets including Saudi Arabia, UAE, Qatar, Oman, Kuwait, Iraq, Iran, Bahrain, and South Africa. We provide complete technical support from design through commissioning with experienced field service teams across India and international installations.
Get a fast response contact our engineering team now.
Technical Specifications
| Parameter | Range |
|---|---|
| Conveying Capacity | 5 TPH to 100 TPH |
| Conveying Distance | Up to 500 meters |
| Material Compatibility | Hydrated lime, quicklime, lime powder |
| Automation Level | Manual, semi-automatic, fully automatic PLC |
| Power Requirement | Custom based on capacity & distance |
| Customization | Complete system tailored to plant layout |
Download product brochure or request specification sheet, view all material handling systems.
Get Your Lime Handling System Today
If you need a reliable lime handling system manufacturer for India, UAE, Saudi Arabia, Qatar, Oman, Kuwait, Bahrain, Iraq, Iran, or South Africa, Shalimar Engineering delivers engineered pneumatic conveying solutions built for performance and durability.
Ready to proceed? Request your quote or call our team.
FAQs
A: A Lime Handling System is an industrial setup used for storing, conveying, and feeding lime in a safe and dust-free manner. It automates the transfer of hydrated lime or quicklime using pneumatic conveying to ensure continuous and controlled plant operations.
A: A Lime Handling System works by storing lime in silos and transferring it through pipelines using compressed air or vacuum pressure. The material is separated at the receiver and filtered to maintain a clean, enclosed, and emission-free process.
A: Lime Handling Systems are widely used in cement plants, steel industries, power plants, and water treatment facilities. These industries require accurate lime feeding for processes like desulfurization, pH control, and emission treatment.
A: Dense phase conveying moves lime at low velocity and high pressure, making it suitable for shorter distances with minimal material degradation. Dilute phase conveying uses higher air velocity for long-distance transfer and higher throughput applications.
A: A typical Lime Handling System includes a storage silo, feeding device, pneumatic pipeline, blower or compressor, dust collector, and PLC control panel. These components work together to ensure efficient, automated, and dust-controlled lime transfer.
A: Before installation, factors like conveying capacity, distance, type of lime, automation level, and plant layout must be evaluated. Selecting the right configuration improves efficiency, reduces downtime, and ensures long-term operational reliability.
